How to add static route globally and under the vrf

How to add static route globally and under the vrf

Static Routing

Static routing is a method where routes are manually configured in the routing table by a network administrator, as opposed to being learned dynamically via routing protocols. It is commonly used in simple or controlled environments where routes rarely change.



  • Static Routing

  • Static Routing on Interface

  • Static Routing on VRF



Prerequisites

Hardware:

  • Switches or routers that support VLANs
     (e.g., edgecore, ufispace)

Software:

  • Network operating systems that support VLAN configuration
     (e.g., SONiC-OS-4.4.0-Enterprise_Base, SONiC-OS-4.4.2-Enterprise_Base)

Access:

  • Administrative or privileged CLI access



Commands:

config static route add:

  • This command is used to add a static route.

Syntax:

ip route <Destination-IP/mask> <nexthop-IP/interface> <route-preference/nexthop-vrf/tag>



config static route del:

  • This command is used to delete a static route.

Syntax



Scenario_01: Static routing

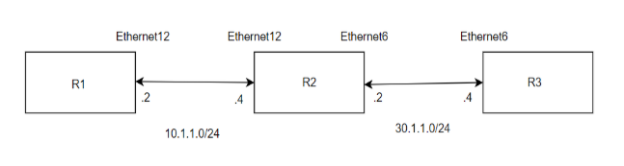

Topology:





Procedure:

Step 1: Configure ip addresses for interfaces as per topology

R1:

  interafce Ethernet12

ip address 10.1.1.2/24



R2:

 interface Ethernet 12

Ip address 10.1.1.4/24



interface Ethernet6

ip address 30.1.1.2/24


R3:

 interface Ethernet6

ip address 30.1.1.4/24


Step 2: configure static route

R1:

sonic(config)# ip route 30.1.1.0/24 10.1.1.4

R3:

sonic(config)# ip route 10.1.1.0/24 30.1.1.2



Validation:

Check the destination IP address in routing table

R1:

  sonic# show ip route

Codes:  K - kernel route, C - connected, S - static, B - BGP, O - OSPF

        > - selected route, * - FIB route, q - queued route, r - rejected route

       Destination        Gateway                                                                    Dist/Metric   Last Update

--------------------------------------------------------------------------------------------------------------------------------

K>*   0.0.0.0/0          via 172.27.1.1                  Management0                                0/202         01:31:20 ago

C>*   10.1.1.0/24       Direct                          Ethernet12                                 0/0           00:00:43 ago

C>*   172.27.1.0/24      Direct                          Management0                                0/0           01:31:20 ago

S>*   30.1.1.0/24       via 10.1.1.4                   Ethernet12                                 1/0           00:00:04 ago



 sonic# ping 30.1.1.4

PING 30.1.1.4 (30.1.1.4) 56(84) bytes of data.

64 bytes from 30.1.1.4: icmp_seq=1 ttl=63 time=0.315 ms

64 bytes from 30.1.1.4: icmp_seq=2 ttl=63 time=0.309 ms



sonic# traceroute 30.1.1.4

traceroute to 30.1.1.4 (30.1.1.4), 30 hops max, 60 byte packets

 1  10.1.1.4 (10.1.1.4)  0.352 ms  0.316 ms  0.344 ms

 2  30.1.1.4 (30.1.1.4)  0.312 ms  0.444 ms  0.510 ms





R3:

 sonic# show ip route

Codes:  K - kernel route, C - connected, S - static, B - BGP, O - OSPF

        > - selected route, * - FIB route, q - queued route, r - rejected route

       Destination        Gateway                                                                    Dist/Metric   Last Update

--------------------------------------------------------------------------------------------------------------------------------

K>*   0.0.0.0/0          via 172.27.1.1                  Management0                                0/202         01:31:20 ago

C>*   30.1.1.0/24       Direct                          Ethernet6                                  0/0           00:00:43 ago

C>*   172.27.1.0/24      Direct                          Management0                                0/0           01:31:20 ago

S>*   10.1.1.0/24       via 30.1.1.2                   Ethernet6                                 1/0           00:00:04 ago





sonic# ping 10.1.1.2

PING 10.1.1.2 (10.1.1.2) 56(84) bytes of data.

64 bytes from 10.1.1.2: icmp_seq=1 ttl=63 time=0.339 ms

64 bytes from 10.1.1.2: icmp_seq=2 ttl=63 time=0.348 ms



sonic# traceroute 10.1.1.2

traceroute to 10.1.1.2 (10.1.1.2), 30 hops max, 60 byte packets

 1  30.1.1.2 (30.1.1.2)  0.358 ms  0.309 ms  0.285 ms

 2  10.1.1.2 (10.1.1.2)  0.440 ms  0.394 ms  0.369 ms





Scenario_02: Static Routing on Interface

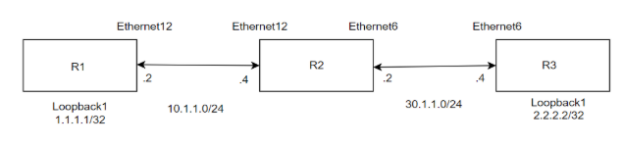

Topology:




Procedure:

Step 1: Configure ip addresses for interfaces and loopback as per topology

R1:

  interafce Ethernet12

ip address 10.1.1.2/24



interface Loopback 1

ip address 1.1.1.1/32


R2:

 interface Ethernet 12

Ip address 10.1.1.4/24



interface Ethernet6

ip address 30.1.1.2/24


R3:

 interface Ethernet6

ip address 30.1.1.4/24



interface Loopback 1

Ip address 2.2.2.2/32


Step 2: configure static route

R1:

sonic(config)# ip route 30.1.1.0/24 interface Ethernet 12

sonic(config)# ip route 2.2.2.2/32 interface Ethernet 12


R3:

 sonic(config)# ip route 10.1.1.0/24 interface Ethernet6

sonic(config)# ip route 1.1.1.1/32 interface Ethernet6


R2:

 sonic(config)# ip route 1.1.1.1/32 interface Ethernet12

sonic(config)# ip route 2.2.2.2/32 interface Ethernet6


Validation:

R1

 sonic# show ip route

Codes:  K - kernel route, C - connected, S - static, B - BGP, O - OSPF

        > - selected route, * - FIB route, q - queued route, r - rejected route

       Destination        Gateway                                                                    Dist/Metric   Last Update

--------------------------------------------------------------------------------------------------------------------------------

K>*   0.0.0.0/0          via 172.27.1.1                  Management0                                0/202         01:48:19 ago

C>*   1.1.1.1/32         Direct                          Loopback1                                  0/0           00:04:10 ago

C>*   10.1.1.0/24       Direct                          Ethernet12                                 0/0           00:17:42 ago

C>*   172.27.1.0/24      Direct                          Management0                                0/0           01:48:19

S>*   30.1.1.0/24       Direct                          Ethernet12                                 1/0           00:00:10 ago

S>*   2.2.2.2/32       Direct                          Ethernet12                                 1/0           00:00:20 ago



sonic# ping 2.2.2.2

PING 2.2.2.2 (2.2.2.2) 56(84) bytes of data.

64 bytes from 2.2.2.2: icmp_seq=1 ttl=63 time=0.273 ms

64 bytes from 2.2.2.2: icmp_seq=2 ttl=63 time=0.273 ms



R2:

 sonic# show ip route

Codes:  K - kernel route, C - connected, S - static, B - BGP, O - OSPF

        > - selected route, * - FIB route, q - queued route, r - rejected route

       Destination        Gateway                                                                    Dist/Metric   Last Update

--------------------------------------------------------------------------------------------------------------------------------

K>*   0.0.0.0/0          via 172.27.1.1                  Management0                                0/202         01:48:19 ago

C>*   10.1.1.0/24          Direct                        Ethernet12                                  0/0           00:04:10 ago

C>*   30.1.1.0/24        Direct                          Ethernet6                                  0/0           00:17:42 ago

C>*   172.27.1.0/24      Direct                          Management0                                0/0           01:48:19

S>*   2.2.2.2/32       Direct                          Ethernet6                                  1/0           00:00:40 ago

S>*   1.1.1.1/32       Direct                          Ethernet12                                  1/0           00:00:38 ago


R3

 sonic# show ip route

Codes:  K - kernel route, C - connected, S - static, B - BGP, O - OSPF

        > - selected route, * - FIB route, q - queued route, r - rejected route

       Destination        Gateway                                                                    Dist/Metric   Last Update

--------------------------------------------------------------------------------------------------------------------------------

K>*   0.0.0.0/0          via 172.27.1.1                  Management0                                0/202         01:48:19 ago

C>*   2.2.2.2/32         Direct                          Loopback1                                  0/0           00:04:10 ago

C>*   30.1.1.0/24       Direct                          Ethernet6                                  0/0           00:17:42 ago

C>*   172.27.1.0/24      Direct                          Management0                                0/0           01:48:19

S>*   10.1.1.0/24       Direct                          Ethernet6                                  1/0           00:00:30 ago

S>*   1.1.1.1/32       Direct                          Ethernet6                                  1/0           00:00:50 ago





sonic# ping 1.1.1.1

PING 1.1.1.1 (1.1.1.1) 56(84) bytes of data.

64 bytes from 1.1.1.1: icmp_seq=1 ttl=63 time=0.297 ms

64 bytes from 1.1.1.1: icmp_seq=2 ttl=63 time=0.304 ms

64 bytes from 1.1.1.1: icmp_seq=3 ttl=63 time=0.297 ms



Static Routing on VRF

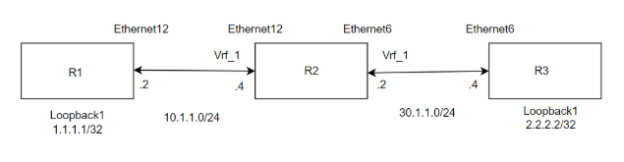

Topology:




Procedure:

Step 1: Configure ip addresses for interfaces and loopback on R1 and R3 as per topology

R1:

Configure ip address to Ethernet12

 interafce Ethernet12

ip address 10.1.1.2/24

Configure ip address to loopback1

interface Loopback1

ip address 1.1.1.1/32



R3:

Configure ip address to Ethernet6

 interface Ethernet6

ip address 30.1.1.4/24

Configure ip address to loopback1

 interface Loopback1

ip address 2.2.2.2/32


Step 2: Create vrf on R2

  ip vrf Vrf_1

Step 3: Bind vrf to interfaces on R2

interface Ethernet6

ip vrf forwarding Vrf_1



interface Ethernet12

ip vrf forwarding Vrf_1



Step 4: Configure ip addresses to interface on R2 as per topology

R2:

 interface Ethernet12

ip address 10.1.1.4/24



interface Ethernet6

ip address 30.1.1.2/24

Step 5: Configure static route on R1 and R3

R1:

 sonic(config)# ip route 30.1.1.0/24 10.1.1.4

sonic(config)# ip route 2.2.2.2/32 10.1.1.4


R3:

 sonic(config)# ip route 10.1.1.0/24 30.1.1.2

sonic(config)# ip route 1.1.1.1/32 30.1.1.2


Step 6: Configure static route on vrf in R2



 sonic(config)# ip route vrf Vrf_1 2.2.2.2/32 30.1.1.4

Result : ping R1 loopback IP address to R3 Loopback IP address.

R1:

 sonic# ping 2.2.2.2

PING 2.2.2.2 (2.2.2.2) 56(84) bytes of data.

64 bytes from 2.2.2.2: icmp_seq=1 ttl=63 time=0.273 ms

64 bytes from 2.2.2.2: icmp_seq=2 ttl=63 time=0.273 ms
