How to config bfd

How to config bfd

BFD (Bidirectional Forwarding Detection):

Bidirectional Forwarding Detection (BFD) is a lightweight network protocol designed to detect link failures rapidly between two forwarding engines (e.g., routers or switches). BFD operates independently of media, routing protocols, and data plane, enabling sub-second failure detection. In this document, we explore BFD configuration and validation on SONiC switches integrated with BGP.



Tested model & firmware version:

  • Switch model name:

Accton-AS5712-54X

  • Community sonic version:

202211.2

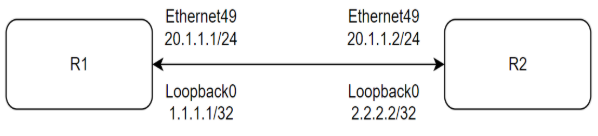

TOPOLOGY:





Configuration commands (sonic configurations)

Note: Commands are to be executed in sudo and vtysh mode.

Step1: Configure the IP address and Loopback address as per topology. Refer to ip interface configuration.

Step2: Configure the EBGP and add the BFD in EBGP neighbor.

R1:

root@sonic:/home/admin# vtysh

sonic.PALCNETWORKS.COM# configure terminal

sonic.PALCNETWORKS.COM(config)# router bgp 100

sonic.PALCNETWORKS.COM(config-router)# neighbor 20.1.1.2 remote-as 200

sonic.PALCNETWORKS.COM(config-router)# neighbor 20.1.1.2 bfd

sonic.PALCNETWORKS.COM(config-router)# network 1.1.1.1/32

sonic.PALCNETWORKS.COM(config-router)# network 20.1.1.0/24

R2:

root@sonic:/home/admin# vtysh

sonic.PALCNETWORKS.COM# configure terminal

sonic.PALCNETWORKS.COM(config)# router bgp 200

sonic.PALCNETWORKS.COM(config-router)# neighbor 20.1.1.1 remote-as 100

sonic.PALCNETWORKS.COM(config-router)# neighbor 20.1.1.1 bfd

sonic.PALCNETWORKS.COM(config-router)# network 2.2.2.2/32

sonic.PALCNETWORKS.COM(config-router)# network 20.1.1.0/24



Step3: Configure the time interval for BFD in all interfaces.

R1:

sonic.PALCNETWORKS.COM(config)# bfd

sonic.PALCNETWORKS.COM(config-bfd)# peer 20.1.1.2

sonic.PALCNETWORKS.COM(config-bfd-peer)# detect-multiplier 3

sonic.PALCNETWORKS.COM(config-bfd-peer)# receive-interval 100

sonic.PALCNETWORKS.COM(config-bfd-peer)# transmit-interval 100

R2:

sonic.PALCNETWORKS.COM(config)# bfd

sonic.PALCNETWORKS.COM(config-bfd)# peer 20.1.1.1

sonic.PALCNETWORKS.COM(config-bfd-peer)# detect-multiplier 3

sonic.PALCNETWORKS.COM(config-bfd-peer)# receive-interval 100

sonic.PALCNETWORKS.COM(config-bfd-peer)# transmit-interval 100



Step4: Check the BFD Configuration on R1 and R2.

R1:

Sonic.PALCNETWORKS.COM# show bfd peer 20.1.1.2

BFD Peer:

        peer 20.1.1.2 local-address 20.1.1.1 vrf default interface Ethernet49

                ID: 1545681435

                Remote ID: 2494635853

                Active mode

                Status: up

                Uptime: 2 minute(s), 50 second(s)

                Diagnostics: ok

                Remote diagnostics: ok

                Peer Type: configured

                Local timers:

                        Detect-multiplier: 3

                        Receive interval: 200ms

                        Transmission interval: 200ms

                        Echo receive interval: 50ms

                        Echo transmission interval: disabled

                Remote timers:

                        Detect-multiplier: 3

                        Receive interval: 100ms

                        Transmission interval: 100ms

                        Echo receive interval: 50ms



sonic.PALCNETWORKS.COM# show ip bgp summary



IPv4 Unicast Summary (VRF default):

BGP router identifier 1.1.1.1, local AS number 100 vrf-id 0

BGP table version 17

RIB entries 13, using 2392 bytes of memory

Peers 1, using 723 KiB of memory



Neighbor        V         AS   MsgRcvd   MsgSent   TblVer  InQ OutQ  Up/Down State/PfxRcd   PfxSnt Desc

20.1.1.2        4        200        48        59        0    0    0 00:00:02            3        7 N/A

R2:

Sonic.PALCNETWORKS.COM# show bfd peer 20.1.1.1

BFD Peer:

        peer 20.1.1.1 local-address 20.1.1.2 vrf default interface Ethernet49

                ID: 1545681435

                Remote ID: 2494635853

                Active mode

                Status: up

                Uptime: 1 minute(s), 15 second(s)

                Diagnostics: ok

                Remote diagnostics: ok

                Peer Type: configured

                Local timers:

                        Detect-multiplier: 3

                        Receive interval: 200ms

                        Transmission interval: 200ms

                        Echo receive interval: 50ms

                        Echo transmission interval: disabled

                Remote timers:

                        Detect-multiplier: 3

                        Receive interval: 100ms

                        Transmission interval: 100ms

                        Echo receive interval: 50ms



sonic.PALCNETWORKS.COM# show ip bgp summary



IPv4 Unicast Summary (VRF default):

BGP router identifier 2.2.2.2, local AS number 200 vrf-id 0

BGP table version 113

RIB entries 17, using 3128 bytes of memory

Peers 1, using 723 KiB of memory



Neighbor        V         AS   MsgRcvd   MsgSent   TblVer  InQ OutQ  Up/Down State/PfxRcd   PfxSnt Desc

20.1.1.1        4        100       214       179        0    0    0 00:02:43            7        9 N/A



Step5: Shutdown the Ethernet49 port from R1 and check the bfd status:

R1:

sonic.PALCNETWORKS.COM# show bfd peer 20.1.1.2

BFD Peer:

        peer 20.1.1.2 local-address 20.1.1.1 vrf default interface Ethernet49

                ID: 1545681435

                Remote ID: 2494635853

                Active mode

                Status: down

                Uptime: 10 second(s)

                Diagnostics: ok

                Remote diagnostics: ok

                Peer Type: configured

                Local timers:

                        Detect-multiplier: 3

                        Receive interval: 200ms

                        Transmission interval: 200ms

                        Echo receive interval: 50ms

                        Echo transmission interval: disabled

                Remote timers:

                        Detect-multiplier: 3

                        Receive interval: 100ms

                        Transmission interval: 100ms

                        Echo receive interval: 50ms



sonic.PALCNETWORKS.COM# show ip bgp summary



IPv4 Unicast Summary (VRF default):

BGP router identifier 1.1.1.1, local AS number 100 vrf-id 0

BGP table version 15

RIB entries 9, using 1656 bytes of memory

Peers 1, using 723 KiB of memory



Neighbor        V         AS   MsgRcvd   MsgSent   TblVer  InQ OutQ  Up/Down State/PfxRcd   PfxSnt Desc

20.1.1.2        4        200        40        46        0    0    0 00:00:15       Active        0 N/A



Total number of neighbors 1



R2:

Sonic.PALCNETWORKS.COM# show bfd peer 20.1.1.1

BFD Peer:

        peer 20.1.1.1 local-address 20.1.1.2 vrf default interface Ethernet49

                ID: 1545681435

                Remote ID: 2494635853

                Active mode

                Status: down

                Uptime: 20 second(s)

                Diagnostics: ok

                Remote diagnostics: ok

                Peer Type: configured

                Local timers:

                        Detect-multiplier: 3

                        Receive interval: 200ms

                        Transmission interval: 200ms

                        Echo receive interval: 50ms

                        Echo transmission interval: disabled

                Remote timers:

                        Detect-multiplier: 3

                        Receive interval: 100ms

                        Transmission interval: 100ms

                        Echo receive interval: 50ms



sonic.PALCNETWORKS.COM# show ip bgp summary



IPv4 Unicast Summary (VRF default):

BGP router identifier 2.2.2.2, local AS number 200 vrf-id 0

BGP table version 32

RIB entries 3, using 552 bytes of memory

Peers 1, using 723 KiB of memory



Neighbor        V         AS   MsgRcvd   MsgSent   TblVer  InQ OutQ  Up/Down State/PfxRcd   PfxSnt Desc

20.1.1.1        4        100        56        48        0    0    0 00:01:20       Active        0 N/A



Total number of neighbors 1
