SNMP

Overview

Simple Network Management Protocol (SNMP) is a widely used application-layer protocol that enables centralized monitoring and management of network devices such as switches, routers, and servers. It supports real-time alerts, performance tracking, and remote configuration, making it essential for network operations in enterprise and data center environments.



Feature Description

SNMP enables the following capabilities:

Monitoring

  • Query device/system information using SNMP GET or GETNEXT

  • Monitor interface status, traffic statistics, and system uptime

Configuration (if SET is enabled)

  • Modify device parameters remotely (requires proper access controls)

Event Notification

  • Devices send asynchronous notifications (TRAP/INFORM) to SNMP managers when events like interface state changes occur

NMS Integration

  • Compatible with Network Management Systems (e.g., SolarWinds, Zabbix, LibreNMS)



Prerequisites

Hardware Requirements

  • SONiC-supported switches (e.g., Edgecore, UfiSpace)

Software Requirements

  • Network OS: SONiC-OS Enterprise 4.4.x or later

  • SNMP Daemon: snmpd must be installed and running

Access Requirements

  • Admin or root access via CLI/GUI

  • SNMP utilities installed on management host: snmpwalk, snmpget, snmpset, snmptrap.

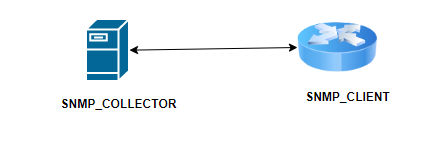

Topology:




Configuration Steps

1. Enable SNMP Service

snmp-server enable trap



2. Add SNMP Agent Address

#syntax
snmp-server agentaddress <device-ip>


# Example:
snmp-server agentaddress 172.27.1.117

3. Create SNMP View

snmp-server view view1 1 included



4. Add SNMP Group

snmp-server group group1 v2c read view1



5. Add SNMP Community

snmp-server community test1 group group1



6. Set SNMP Location (optional but recommended)

snmp-server location DC-Rack-22



7. Set SNMP Contact (optional)

snmp-server contact admin@example.com



Verification Steps

1. Verify SNMP Configuration

show running-configuration | grep snmp

snmp-server location "DC-Rack-22"
snmp-server contact "admin@example.com"
snmp-server enable trap
snmp-server agentaddress 172.27.1.117
snmp-server community test1 group group1
snmp-server group group1 v2c read view1
snmp-server view view1 1 included




2. View SNMP some other info using this command:

sonic# show snmp-server ?

  community        Display SNMP community configuration

  group            Display SNMP group configuration

  host             Display SNMP trap and notification configuration

  interface-traps  Display interface SNMP traps configuration

  traps            Display SNMP traps configuration

  user             Display SNMP user configuration

  view             Display SNMP view configuration



3. SNMP Walk - Basic System Info on SNMP collector

snmpwalk -v2c -c test1 172.27.1.117 .1.3.6.1.2.1.1


iso.3.6.1.2.1.1.1.0 = STRING: "SONiC Software Version: SONiC.4.4.2..."
iso.3.6.1.2.1.1.5.0 = STRING: "sonic.PALCNETWORKS.COM"




4. SNMP Get – SysName

snmpget -v2c -c test1 172.27.1.117 .1.3.6.1.2.1.1.5.0
iso.3.6.1.2.1.1.5.0 = STRING: "sonic.PALCNETWORKS.COM"



Troubleshooting Tips

  • Ensure SNMP daemon is running:

docker exec -it snmp cat /etc/snmp/snmpd.conf



  • Validate that snmp-server view is configured and used in the group

  • Check firewall rules to ensure SNMP UDP port 161 is open

  • Use tcpdump to confirm SNMP queries are reaching the device.



SNMPv3 Configuration on SONiC (Broadcom Platform)

Create SNMP Group and Bind the View (if using custom views):

 snmp-server group group2 v3 auth read view1

Create SNMPv3 User with AuthPriv (secure mode)

Syntax:

snmp-server user <username> group <group-name> auth sha auth-password <auth-password> priv aes-128 priv-password <priv-password>

Example

 snmp-server user admin group group2 auth sha auth-password admin1234 priv aes-128 priv-password admin5678

Validate the user information:

 sonic# show snmp-server user



           User Name                        Group Name            Auth  Privacy

-------------------------------- -------------------------------- ----- -------

admin                                         group2                                sha   aes-128


Test SNMPv3 from a Remote Client

 root@sonic:/# snmpwalk -v3 -u admin -l authPriv -a SHA -A admin1234 -x AES -X admin5678 172.27.1.117

iso.3.6.1.2.1.1.1.0 = STRING: "SONiC Software Version: SONiC.4.4.2-Enterprise_Base - HwSku: UFISPACE-S9110-32X - Distribution: Debian 11.11 - Kernel: 5.10.0-21-amd64

"

iso.3.6.1.2.1.1.2.0 = OID: iso.3.6.1.4.1.4413.1.2.1.9.2

iso.3.6.1.2.1.1.3.0 = Timeticks: (580525) 1:36:45.25

iso.3.6.1.2.1.1.4.0 = STRING: "admin@palcnetworks.com"

iso.3.6.1.2.1.1.5.0 = STRING: "sonic"

iso.3.6.1.2.1.1.6.0 = STRING: "test123"

.............................................
