SNMP

Overview

Simple Network Management Protocol (SNMP) is a widely used application-layer protocol that enables centralized monitoring and management of network devices such as switches, routers, and servers. It supports real-time alerts, performance tracking, and remote configuration, making it essential for network operations in enterprise and data center environments.



Feature Description

SNMP enables the following capabilities:

Monitoring

  • Query device/system information using SNMP GET or GETNEXT

  • Monitor interface status, traffic statistics, and system uptime

Configuration (if SET is enabled)

  • Modify device parameters remotely (requires proper access controls)

Event Notification

  • Devices send asynchronous notifications (TRAP/INFORM) to SNMP managers when events like interface state changes occur

NMS Integration

  • Compatible with Network Management Systems (e.g., SolarWinds, Zabbix, LibreNMS)



Prerequisites

Hardware Requirements

  • SONiC-supported switches (e.g., Edgecore, UfiSpace)

Software Requirements

  • Network OS: SONiC.master

  • SNMP Daemon: snmpd must be installed and running

Access Requirements

  • Admin or root access via CLI/GUI

  • SNMP utilities installed on management host: snmpwalk, snmpget, snmpset, snmptrap.

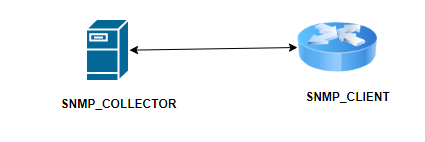

Topology:





Configuration Steps

Note 1: Commands are to be executed in sudo mode

1. Add SNMP Agent Address

#syntax
sudo config snmpagentaddress<add/del> <agent_IP_address>


# Example:
sudo config snmpagentaddress add 172.27.1.117



2. Add SNMP Community

sudo config snmp community [add/del] <community> (RO | RW)

replace the community by the following command.

sudo config snmp community replace <old_community> <new_commuity>



Example:

sudo config snmp community add test1 RO



3. Set SNMP Location (optional but recommended)

sudo config snmp location [add/del/modify] <location>

Example:

sudo config snmp location add DC_RACK



4. Set SNMP Contact (optional)

sudo config snmp contact [add/del/modify] <contact> <contact_email>

Example:



sudo config snmp contact add joe joe@contoso.com



Verification Steps

1. Verify SNMP Configuration

admin@sonic:~$ show runningconfiguration snmp

Location

--------------------

DC_RACK



SNMP_CONTACT SNMP_CONTACT_EMAIL

-------------------   ---------------------------

Joe                                    joe@contoso.com

Community String Community Type

-----------------------   ----------------------

test1                             RO



User Permission Type Type Auth Type Auth Password Encryption Type Encryption Password




2. View SNMP some other info using this command:

admin@sonic:~$ show snmp ?

Usage: show [OPTIONS] COMMAND [ARGS]...

Try "show -h" for help.



Error: Too many matches: snmpagentaddress, snmptrap



3. SNMP Walk - Basic System Info on SNMP collector

root@sonic:/#  snmpwalk -v2c -c test1 172.27.1.117 .1.3.6.1.2.1.1


iso.3.6.1.2.1.1.1.0 = STRING: "SONiC Software Version: SONiC.master.838190-21255dffd - HwSku: UFISPACE-S9110-32X - Distribution: Debian 12.9 - Kernel: 6.1.0-22-2-amd64"

iso.3.6.1.2.1.1.2.0 = OID: iso.3.6.1.4.1.8072.3.2.10

iso.3.6.1.2.1.1.3.0 = Timeticks: (8473) 0:01:24.73

iso.3.6.1.2.1.1.4.0 = STRING: "Azure Cloud Switch vteam <linuxnetdev@microsoft.com>"

iso.3.6.1.2.1.1.5.0 = STRING: "sonic"

iso.3.6.1.2.1.1.6.0 = STRING: "NotConfigured"

iso.3.6.1.2.1.1.7.0 = INTEGER: 72

iso.3.6.1.2.1.1.8.0 = Timeticks: (2) 0:00:00.02

iso.3.6.1.2.1.1.9.1.2.1 = OID: iso.3.6.1.6.3.10.3.1.1

iso.3.6.1.2.1.1.9.1.2.2 = OID: iso.3.6.1.6.3.11.3.1.1

iso.3.6.1.2.1.1.9.1.2.3 = OID: iso.3.6.1.6.3.15.2.1.1

iso.3.6.1.2.1.1.9.1.2.4 = OID: iso.3.6.1.6.3.1

iso.3.6.1.2.1.1.9.1.2.5 = OID: iso.3.6.1.6.3.16.2.2.1

iso.3.6.1.2.1.1.9.1.2.6 = OID: iso.3.6.1.2.1.49

iso.3.6.1.2.1.1.9.1.2.7 = OID: iso.3.6.1.2.1.50

iso.3.6.1.2.1.1.9.1.2.8 = OID: iso.3.6.1.6.3.13.3.1.3

iso.3.6.1.2.1.1.9.1.2.9 = OID: iso.3.6.1.2.1.92

iso.3.6.1.2.1.1.9.1.3.1 = STRING: "The SNMP Management Architecture MIB."

iso.3.6.1.2.1.1.9.1.3.2 = STRING: "The MIB for Message Processing and Dispatching."

iso.3.6.1.2.1.1.9.1.3.3 = STRING: "The management information definitions for the SNMP User-based Security Model."

iso.3.6.1.2.1.1.9.1.3.4 = STRING: "The MIB module for SNMPv2 entities"

iso.3.6.1.2.1.1.9.1.3.5 = STRING: "View-based Access Control Model for SNMP."

iso.3.6.1.2.1.1.9.1.3.6 = STRING: "The MIB module for managing TCP implementations"

iso.3.6.1.2.1.1.9.1.3.7 = STRING: "The MIB module for managing UDP implementations"

iso.3.6.1.2.1.1.9.1.3.8 = STRING: "The MIB modules for managing SNMP Notification, plus filtering."

iso.3.6.1.2.1.1.9.1.3.9 = STRING: "The MIB module for logging SNMP Notifications."

iso.3.6.1.2.1.1.9.1.4.1 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.2 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.3 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.4 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.5 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.6 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.7 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.8 = Timeticks: (2) 0:00:00.02

iso.3.6.1.2.1.1.9.1.4.9 = Timeticks: (2) 0:00:00.02




4. SNMP Get – SysName

root@sonic:/#  snmpget -v2c -c test1 172.27.1.117 .1.3.6.1.2.1.1.5.0
iso.3.6.1.2.1.1.5.0 = STRING: "sonic"



Troubleshooting Tips

  • Ensure SNMP daemon is running:

docker exec -it snmp cat /etc/snmp/snmpd.conf



  • Validate that snmp-server view is configured and used in the group

  • Check firewall rules to ensure SNMP UDP port 161 is open

  • Use tcpdump to confirm SNMP queries are reaching the device.



SNMPv3 Configuration on SONiC

Create SNMPv3 User with AuthPriv (secure mode)

Syntax:

sudo config snmp user <add|del> <snmp_user><noAuthNoPriv|AuthNoPriv|Priv> <RO|RW>

                            <MD5|SHA|HMAC-SHA-2> <auth_password> <DES|AES>

                            <encrypt_password>

Example

sudo config snmp user add test1 Priv RO SHA test1234 AES test5678



Validate the user information:

admin@sonic:~$ show runningconfiguration snmp user

User    Permission Type    Type    Auth Type    Auth Password    Encryption Type    Encryption Password

------  -----------------  ------  -----------  ---------------  -----------------  ---------------------

test1   RO                 Priv    SHA          test1234         AES                test5678



Test SNMPv3 from a Remote Client

root@sonic:/# snmpwalk -v3 -u test1 -l authPriv -a SHA -A test1234 -x AES -X test5678 172.27.1.117

iso.3.6.1.2.1.1.1.0 = STRING: "SONiC Software Version: SONiC.master.838190-21255dffd - HwSku: UFISPACE-S9110-32X - Distribution: Debian 12.9 - Kernel: 6.1.0-22-2-amd64"

iso.3.6.1.2.1.1.2.0 = OID: iso.3.6.1.4.1.8072.3.2.10

iso.3.6.1.2.1.1.3.0 = Timeticks: (15974) 0:02:39.74

iso.3.6.1.2.1.1.4.0 = STRING: "Azure Cloud Switch vteam <linuxnetdev@microsoft.com>"

iso.3.6.1.2.1.1.5.0 = STRING: "sonic"

iso.3.6.1.2.1.1.6.0 = STRING: "NotConfigured"

iso.3.6.1.2.1.1.7.0 = INTEGER: 72

iso.3.6.1.2.1.1.8.0 = Timeticks: (2) 0:00:00.02

iso.3.6.1.2.1.1.9.1.2.1 = OID: iso.3.6.1.6.3.10.3.1.1

iso.3.6.1.2.1.1.9.1.2.2 = OID: iso.3.6.1.6.3.11.3.1.1

iso.3.6.1.2.1.1.9.1.2.3 = OID: iso.3.6.1.6.3.15.2.1.1

iso.3.6.1.2.1.1.9.1.2.4 = OID: iso.3.6.1.6.3.1

iso.3.6.1.2.1.1.9.1.2.5 = OID: iso.3.6.1.6.3.16.2.2.1

.............................................
