What to do if Edgecore Device LEDs are not glowing?
Model Number: 7326-56X-O-AC-F
If the Edgecore device LEDs are not glowing, follow these steps:
1. Try Power cycle or reboot and check whether all LEDs are off during the entire boot process.
2. Make sure both the PSUs are powered on.

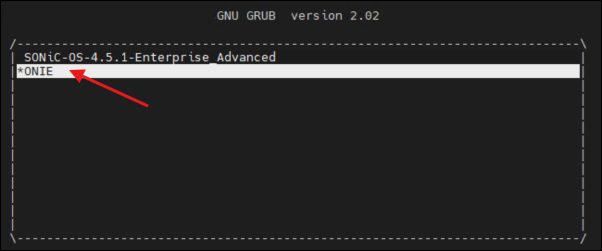

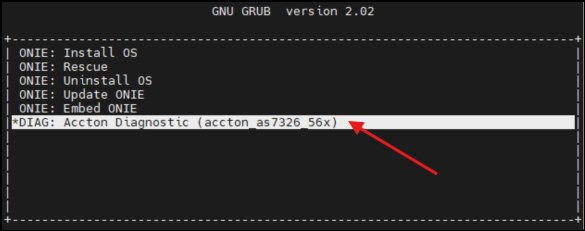

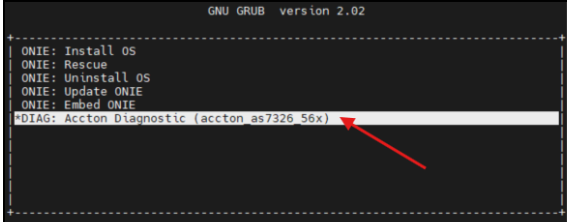

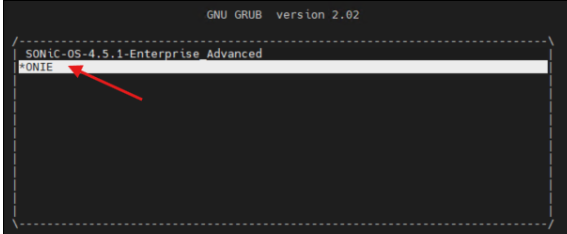

3. Power cycle the device and enter Diag mode (Refer to the photos attached)
4. Run the commands
root@(none):/# i2cset -y 0 0x77 0x01
root@(none):/# i2cset -y 0 0x71 0x02
root@(none):/# i2cget -y 0 0x60 0x21
root@(none):/# i2cget -y 0 0x60 0x22
root@(none):/# i2cget -y 0 0x60 0x23
root@(none):/# i2cget -y 0 0x60 0x24
root@(none):/# i2cget -y 0 0x60 0x25
root@(none):/# i2cset -y 0 0x60 0x21 0x05
root@(none):/# i2cset -y 0 0x60 0x22 0x05
root@(none):/# i2cset -y 0 0x60 0x23 0x05
root@(none):/# i2cset -y 0 0x60 0x24 0x05
root@(none):/# i2cset -y 0 0x60 0x25 0x05

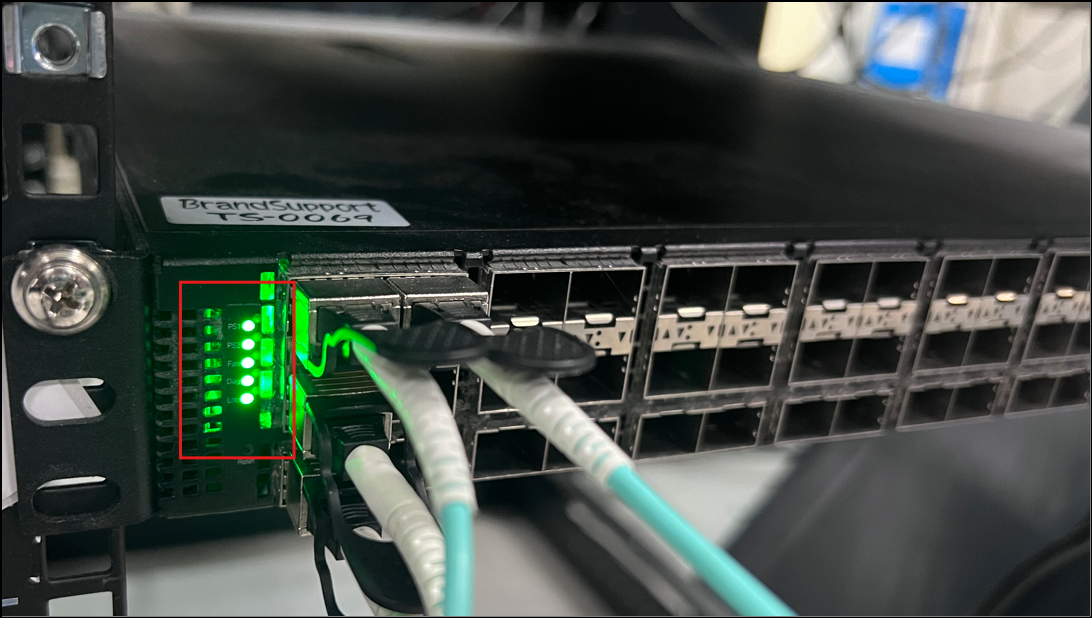

5. After executing the last five commands, the five system LEDs should be forced to light up green (as shown in the photo below).
